Design of a Strut Mechanism

: Maplesoft AuthorSamir Khan
Engineering software solutions from Maplesoft
This Application runs in Maple Flow. Don't have Maple Flow? No problem!
 Try Maple Flow free for 15 days!

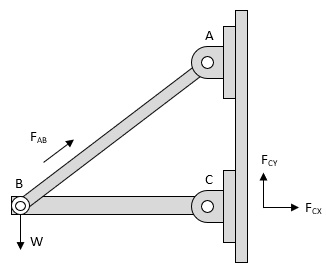

Consider the illustrated mechanism. BC is a square tube strut and AB is a solid steel rod eyebar - both are manufactured from ASTM A36 Steel. What is the weight W that BC can support without buckling, and the
diameter of AB to support AB?


Application Details

Publish Date: November 13, 2022
Created In: Maple Flow 2021
Language: English
