Circle Packing in an Ellipse

Introduction

This application finds the optimum packing of various size circles in an ellipse, such that the area of the ellipse is minimized.





This is a difficult global optimization problem and demands strong solvers. This application uses Maple's Global Optimization Toolbox



Circle packing (and packing optimization in general) is characterized by a large optimization space and many constraints; for this application, 35 circles generates 666 constraint equations.



The number of circles can be increased to create an increasingly complex problem; Maple automatically generates the symbolic constraint equations.



Applications like this are used to stress-test global optimizers.



The constraints and ellipse parameterization are taken from "Packing circles within ellipses", Birgin et al., International Transactions in Operational Research , Volume 20, Issue 3, pages 365–389, May 2013.

Setup

>

restart
with(GlobalOptimization)

Number of circles

>

n := 35

Radius of circles

>

for i to n do r[i] := 1+.1*i end do

Area of ellipse (assuming the ellipse is described by the equation x^2/a^2+y^2/b^2 = 1

>

area := Pi*a*b

Decision Variables and Optimization Bounds

See the reference in the introduction for a description of the decision variables. The position of the circles can be recovered from si, ui, vi, a and b (where a and b are the semi-axis of circumscribing ellipse)

>

bounds := seq(s[i] = 0 .. 1, i = 1 .. n), seq(u[i] = -50 .. 50, i = 1 .. n), seq(v[i] = -50 .. 50, i = 1 .. n), a = 0 .. 50, b = 0 .. 50

Constraints

See the reference in the introduction for a description of the constraints.

>

cons1 := seq((u[i]/a)^2+(v[i]/b)^2 = 1, i = 1 .. n)

>

cons2 := seq(((s[i]-1)/r[i])^2*((b^2/a^2)^2*u[i]^2+v[i]^2) >= 1, i = 1 .. n)

>

cons3 := seq(seq((((1+(s[i]-1)*b^2/a^2)*u[i]-(1+(s[j]-1)*b^2/a^2)*u[j])^2+(s[i]*v[i]-s[j]*v[j])^2)/(r[i]+r[j])^2 >= 1, j = i+1 .. n), i = 1 .. n-1)

Hence the entire set of constraints

>

cons := {cons1, cons2, cons3, a >= 1.5*b}

Optimization and Results

>

soln := GlobalSolve(area, cons, bounds, timelimit = 20, populationsize = 1000)

Hence the area of the optimized circumscribing ellipse is

>

soln[1]

1281.27644396036112

(5.1)

Recover the coordinates of the packed circles

>

X := eval([seq(x[i] = (1+(s[i]-1)*b^2/a^2)*u[i], i = 1 .. n)], soln[2])

>

Y := eval([seq(y[i] = s[i]*v[i], i = 1 .. n)], soln[2])

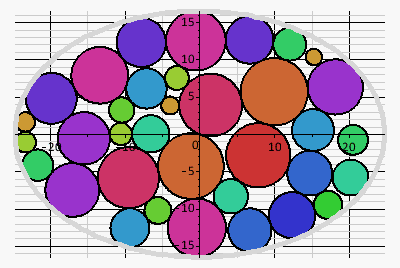

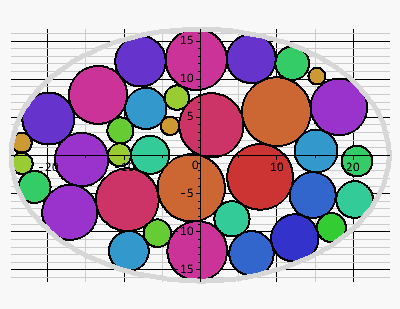

Plot the circles and the optimized ellipse

>

colorSpread := ColorTools:-EvenSpread("SteelBlue", n)

>

circs := seq(plottools:-disk([rhs(select(has, X, x[i])[]), rhs(select(has, Y, y[i])[])], r[i], color = colorSpread[i], thickness = 2), i = 1 .. n)
>

boundingEllipse := plottools:-ellipse([0, 0], rhs(select(has, soln[2], a)[]), rhs(select(has, soln[2], b)[]), color = black, thickness = 5, color = "LightGray", scaling = constrained)
>

plots:-display(circs, boundingEllipse, scaling = constrained, axesfont = [Calibri])
