Maple in Mathematics Education II:
Fourier Series & Wave Equation, 1-D Wave Equation Solutions

by David Canright, Math. Dept., Code MA/Ca, Naval Postgraduate School, Monterey, CA,
dcanright@nps.navy.mil, 2000 David Canright.

Note: This worksheet allows exploration & plotting of Fourier Series solutions to the (one-dimensional) Wave Equation (using partial sums ).

:

, 0 < x < L

Introduction: Setting up the Worksheet

> restart;

> with(plots): need "plots" package for animation below

Section I: General Definitions for Wave Equation

Note: do this section only once (before L, a0, etc. are ever defined)

term: one term (#n) in series
SN: partial sum (up to N) of series

Wave Equation: general definitions
first define terms and partial sum of series solution in terms of Xn & Tn

> unassign('X0','T0','Xn','Tn','n','N');

> u0 := X0 * T0;

> un := Xn * Tn;

> u := u0 + 'sum( un, n=1..N )';

> vel := X0 * 'diff(T0,t)' + 'sum( Xn * diff(Tn,t), n=1..N )';

>

Section II: Define Eigenfunctions from Boundary Conditions

come back and redo this section for each different pair of Boundary Conditions

>

You have four choices; execute only one :

Section IIa: Either fixed-fixed: X(0) = X(L) = 0

> unassign('A0','B0','t','x','n','L','An','Bn','c','kn');

> X0 := 0;

> Xn := sin(kn*x);

> Tn := An*cos(kn*c*t) + Bn*sin(kn*c*t);

> kn := n*Pi/L;

define period of oscillation

> per := 2*L/c;

Now jump down to define particular Fourier Series

>

Section IIb: Or, free-free: X'(0) = X'(L) = 0

> unassign('A0','B0','t','x','n','L','An','Bn','c','kn');

> X0 := 1/2;

> T0 := A0 + B0*t;

> Xn := cos(kn*x);

> Tn := An*cos(kn*c*t) + Bn*sin(kn*c*t);

> kn := n*Pi/L;

define period of oscillation

> per := 2*L/c;

Now jump down to define particular Fourier Series

>

Section IIc: Or, fixed-free: X(0) = X'(L) = 0

> unassign('A0','B0','t','x','n','L','An','Bn','c','kn');

> X0 := 0;

> Xn := sin(kn*x);

> Tn := An*cos(kn*c*t) + Bn*sin(kn*c*t);

> kn := (n-1/2)*Pi/L;

define period of oscillation

> per := 4*L/c;

Now jump down to define particular Fourier Series

>

Section IId: Or, free-fixed: X'(0) = X(L) = 0

> unassign('A0','B0','t','x','n','L','An','Bn','c','kn');

> X0 := 0;

> Xn := cos(kn*x);

> Tn := An*cos(kn*c*t) + Bn*sin(kn*c*t);

> kn := (n-1/2)*Pi/L;

define period of oscillation

> per := 4*L/c;

Now jump down to define particular Fourier Series

Section III: Define Particular Fourier Series from Initial Conditions

come back and redo this section for each different Fourier Series

You have two choices :

If you know the functions f and g , use the first subsection

If you know the coefficients , use the second subsection

If you know f and g, and the coeffiecients, use either subsection

but do not do both !

Section IIIa: Either Calculate Coefficients by Integrals

If you know the function f and choose L, c

you can calculate the coefficients:

using the integral formulas

define particular function f
(default example is from text)
modify this definition for other series

> f := piecewise(x<1,x,2-x);

> g := 0;

choose L

> L := 2;
c := 1;

Now evaluate the integrals to find the coefficients

Note: these steps must be done in order

> 2 / L * Int( f, x=0..L );

> value(%);

> A0 := %;

> 2 / L * Int( f * Xn, x=0..L );

> value(%);

> simplify(%,trig,assume=integer);

> An := %;

> 2 / L * Int( g, x=0..L ) ;

> value(%);

> B0 := %;

> 2 / (kn*c*L) * Int( g * Xn, x=0..L );

> value(%);

> simplify(%,trig,assume=integer);

> Bn := %;

>

At this point, have defined the series, so skip down to the plots

Section IIIb: Or, Specify Coefficients: & L

come back and redo this section for each different Fourier Series

You must first know the formula for each coefficient

define particular series coefficients and L, c
modify these definitions to plot other series

> L := 2;
c := 1;

> A0 := 0;

> An := 8*sin(n*Pi/2)/(n*Pi)^2;

> B0 := 0;

> Bn := 0;

define particular functions f and g (sum of series)
modify this definition for other series

Note: if do not know f or g, set to 0;

> f := piecewise(x<1,x,2-x);
g := 0;

>

At this point, have defined the series, so go on to the plots

Section IV: Plot Partial Sum and/or Terms of Series

try changing the parameters on any or all of these

choose N, check initial displacement:

> unassign('x'); t := 0;
N := 10;
plot( {u,f}, x=0 .. L);

choose N, check initial velocity:

> unassign('x','t');
N := 10;
plot( subs(t=0,{vel,g}), x=0 .. L);

choose N, t to plot the partial sum u at some particular time (can use multiples of the period)

> unassign('x');
N := 10;
t := per/3;

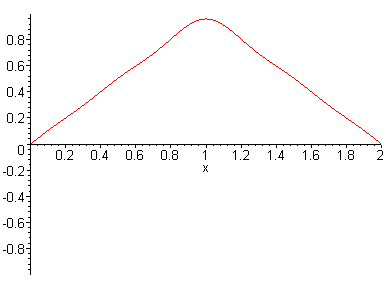

plot( u, x=0 .. L);

choose N, t to plot the partial sum for velocity at some particular time

> unassign('x','t');
N := 10;

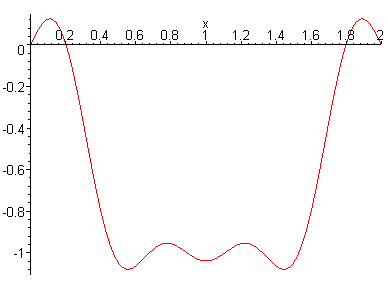

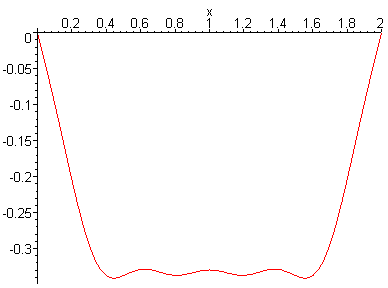

plot( subs(t=per/3,vel), x=0 .. L);

choose N, t to plot the partial sum u over time at some position

> unassign('t');
N := 10;
x := L/3;
plot( u, t=0 .. per);

choose N, x to plot the partial sum for velocity over time at some position

> unassign('t');
N := 10;
x := L/3;

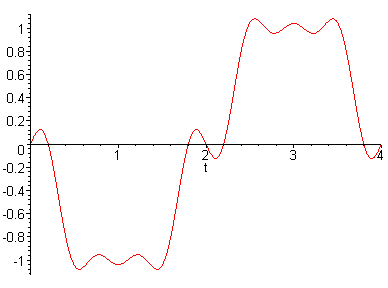

plot( vel, t=0 .. per);

>

Section V: Animate the Vibrating String

choose N, nf (# frames) to animate the partial sum u

> unassign('x','t');
N := 10;
nf := 12; # choose number of frames per period

> animate( u, x=0..L, t=0..(1-1/nf)*per, frames=nf );

choose N, nf (# frames) to animate the partial sum for velocity

> unassign('x','t');
N := 10;
nf := 12; # choose number of frames per period

> animate( vel, x=0..L, t=0..(1-1/nf)*per, frames=nf );

choose N, nf (# frames) to animate the partial sum u and the terms

> unassign('x','t');
N := 3;
nf := 24; # choose number of frames per period

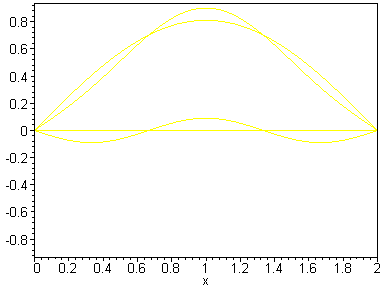

> animate( {u, u0, seq(un,n=1..N)}, x=0..L, t=0..(1-1/nf)*per, frames=nf, axes=boxed ); unassign('n'):

Conclusion: This worksheet clearly demonstrates Maple's ability to be used as an Educational tool for advanced mathematical concepts.
