Chapter 5: Applications of Integration
Section 5.6: Differential Equations
A species undergoes logistic growth, governed by the formula developed in Example 5.6.7. Observation yields the following three data points.
[Time in yearsPopulation Size113003187042070]
Determine the carrying capacity c, the initial population y0, and the rate constant k, if it is known that k>0.
If yt=c y0y0+c−y0e−c k t, then the three constants c,y0, and k can be determined from the three equations
These equations are

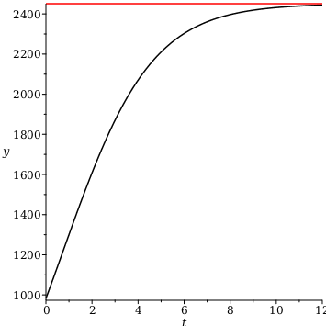

Figure 5.6.8(a) Logistic curve from data
c y0y0+c−y0e−c k
c y0y0+c−y0e−3 c k
c y0y0+c−y0e−4 c k
with (numeric) solution c≐2451,k≐0.000214,y0≐983. Hence, the desired logistic curve is
In Figure 5.6.8(a) this solution is graphed in black; the asymptote c≐2451 is graphed in red. The astute reader will note that this problem required no calculus at all. It is strictly an algebraic problem of fitting a curve with three parameters to three pieces of data.
Write yt=… from Example 5.6.7.
Be sure to use the exponential "e".
Context Panel: Assign Function
yt=c y0y0+c−y0ⅇ−c k t→assign as functiony
Write the equations y1=…, etc.
Press the Enter key.
Solve≻Solve Numerically from point
(See Figure 5.6.8(b) for initial points.)
Figure 5.6.8(b) Initial points for numeric solution
Expression palette: Evaluation template
Evaluate yt at the parameter values.
Context Panel: Evaluate and Display Inline
ytx=a|f(x) = 2.408022604⁢106982.5017593+1468.407444⁢ⅇ−0.5236436096⁢t
The graph in Figure 5.6.8(a) can be obtained with the Plot Builder, invoked from the Context Panel.
