Chapter 8: Applications of Triple Integration
Section 8.1: Volume
Use an iterated triple integral to obtain the volume of R, the first-octant region bounded by the planes x+z=3, and y+5 z=15.

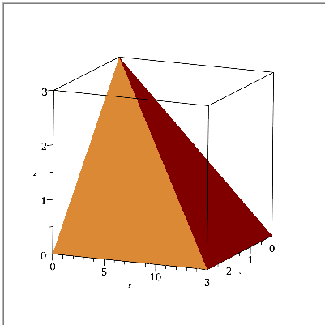

Figure 8.1.4(a) shows the solid whose volume is obtained by iterating a triple integral in Cartesian coordinates in the order dy dz dx.
∫03∫03−x∫053−z1 dy dz dx = 45
Figure 8.1.4(a) Pyramid with 4 lateral faces
Maple Solution - Interactive
Tools≻Load Package: Student Multivariate Calculus
Access the MultiInt command via the Context Panel
Type the integrand, 1.
Context Panel: Student Multivariate Calculus≻Integrate≻Iterated
Fill in the fields of the two dialogs shown below.
Context Panel: Evaluate Integral
Table 8.1.4(a) provides a solution by a task template that integrates in Cartesian coordinates and draws the region of integration.
Calculus - Multivariate≻Integration≻Visualizing Regions of Integration≻Cartesian 3-D
Evaluate ∭RΨx,y,z dv and Graph R
Volume Element dv
Select dvdz dy dxdz dx dydx dy dzdx dz dydy dx dzdy dz dx
, where Ψ=
Table 8.1.4(a) Task template integrating in Cartesian coordinates
Table 8.1.4(b) provides a solution from first principles.
Iterated triple-integral template
Context Panel: Evaluate and Display Inline
∫03∫03−x∫053−z1 ⅆy ⅆz ⅆx = 45
Table 8.1.4(b) Integration via first principles
Maple Solution - Coded
Table 8.1.4(c) obtains a solution via the MultiInt command in the Student MultivariateCalculus package.
Student:-MultivariateCalculus:-MultiInt1,y=0..53−z,z=0..3−x,x=0..3 = 45
Table 8.1.4(c) MultiInt command iterating in Cartesian coordinates in the order dy dz dx
Table 8.1.4(d) implements the iterated integration via the top-level Int and int commands.
Table 8.1.4(d) Top-level Int and int commands
