 DipolePlot
 creates 3D plot of the dipole moment Calling Sequence DipolePlot(molecule, method, options) Parameters

 molecule - list of lists; each list has 4 elements, the string of an atom's symbol and atom's x, y, and z coordinates method - (optional)  method = name/procedure where name is one of 'HartreeFock' (default), 'DensityFunctional', options - (optional) equation(s) of the form option = value where option is any valid option of the chosen method Description

 • The command DipolePlot creates a 3D plot of the electric dipole moment in a molecule.  The dipole moment is displayed in a 3D ball-and-stick model of the molecule as an arrow whose direction indicates the direction of the dipole moment.  By convention the dipole moment points from the partial negative charge on the molecule to the partial positive charge on the molecule. Examples

 > $\mathrm{with}\left(\mathrm{QuantumChemistry}\right):$

Consider the hydrogen peroxide molecule

 >
 ${\mathrm{mol}}{≔}\left[\left[{"O"}{,}{0.72470000}{,}{0}{,}{0}\right]{,}\left[{"O"}{,}{-0.72470000}{,}{0}{,}{0}\right]{,}\left[{"H"}{,}{0.82330000}{,}{-0.70000000}{,}{-0.66760000}\right]{,}\left[{"H"}{,}{-0.82330000}{,}{-0.61750000}{,}{0.74460000}\right]\right]$ (1)

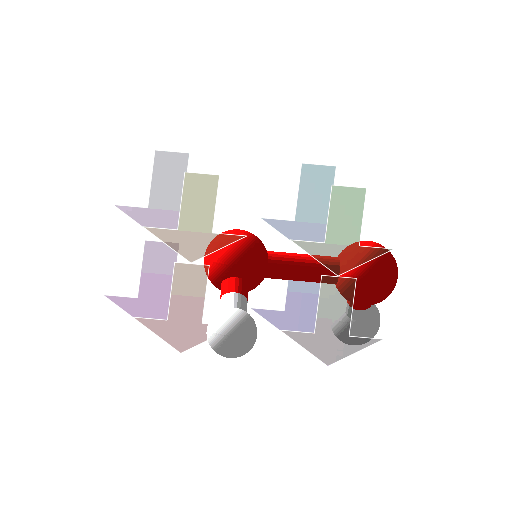

Plot the dipole moment

 > >
