Countercurrent Double-Pipe

Heat Exchanger

Introduction

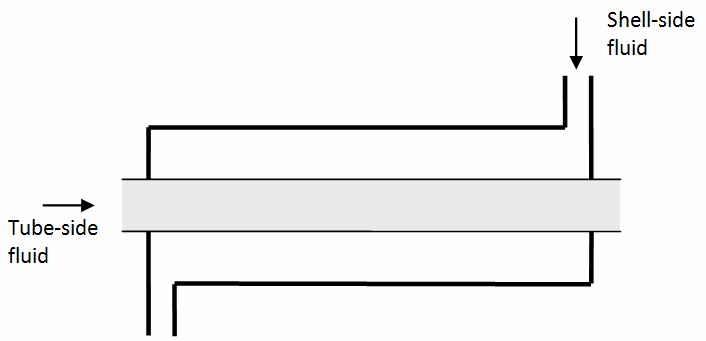

This application models the temperature dynamics of a countercurrent double-pipe heat exchanger. Three partial differential equations describe the following:

 • The heat balances across the tube- and shell-side liquids
 • A heat balance across the tube-wall (taking into account the heat flow from the shell- and tube-side liquids, and conduction along the length of the tube)

The equations are solved numerically, and the temperature profiles are plotted.  The heat exchanger is assumed to be perfectly insulated. Densities, specific heat capacities, heat transfer coefficients, and thermal conductivities are assumed to be constant.

Parameters

Specific heat capacities for the tube-side fluid, shell-side fluid, and the tube wall:

 > $\mathrm{Cpt}≔4085:$$\mathrm{Cps}≔4186:$$\mathrm{Cpw}≔380:$

Densities:

 > $\mathrm{rhot}≔800:$$\mathrm{rhos}≔1200:$$\mathrm{rhow}≔8000:$

Flow rates:

 > $\mathrm{Ft}≔1:$$\mathrm{Fs}≔1:$

Heat transfer coefficients:

 > $\mathrm{Ut}≔40000:$$\mathrm{Us}≔40000:$

Thermal conductivity of tube-wall:

 > $\mathrm{kw}≔109:$

Length of heat exchanger:

 > $\mathrm{L}≔1:$

Internal and external diameter of inner tube, and internal diameter of outer tube:

 > $\mathrm{Di}≔0.05:$$\mathrm{Do}≔0.06:$$\mathrm{Dis}≔0.1:$

Partial Differential Equations Derived from Energy Balances

Tube wall heat balance:

 >

Tube-side heat balance:

 >

Shell-side heat balance:

 >

Initial and boundary conditions:

 > $\mathrm{ibc}≔\mathrm{Ts}\left(\mathrm{x},0\right)=300,\mathrm{Ts}\left(\mathrm{L},\mathrm{t}\right)=300,\phantom{\rule[-0.0ex]{0.0em}{0.0ex}}\phantom{\rule[-0.0ex]{0.0em}{0.0ex}}\mathrm{Tt}\left(\mathrm{x},0\right)=360,\mathrm{Tt}\left(0,\mathrm{t}\right)=360,\phantom{\rule[-0.0ex]{0.0em}{0.0ex}}\phantom{\rule[-0.0ex]{0.0em}{0.0ex}}\mathrm{Tw}\left(\mathrm{x},0\right)=330,{\mathrm{D}}_{1}\left(\mathrm{Tw}\right)\left(0,\mathrm{t}\right)=0,{\mathrm{D}}_{1}\left(\mathrm{Tw}\right)\left(\mathrm{L},\mathrm{t}\right)=0:$

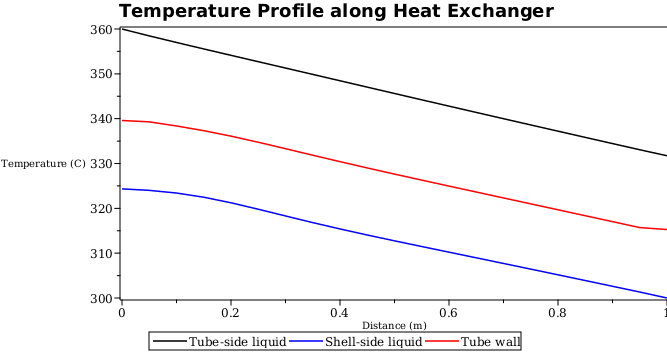

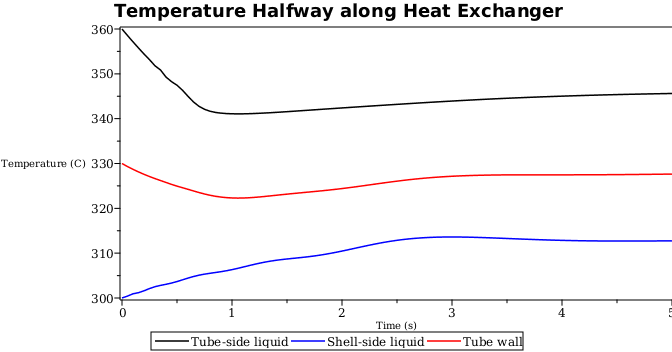

Solution and Results

 >
 >
 > $\mathrm{p1}≔\mathrm{sol}:-\mathrm{plot}\left(\mathrm{Tt},\mathrm{t}=5,\mathrm{x}=0..\mathrm{L},\mathrm{axes}=\mathrm{boxed},\mathrm{color}=\mathrm{black},\mathrm{legend}=\left["Tube-side liquid"\right]\right):$$\mathrm{p2}≔\mathrm{sol}:-\mathrm{plot}\left(\mathrm{Ts},\mathrm{t}=5,\mathrm{x}=0..\mathrm{L},\mathrm{axes}=\mathrm{boxed},\mathrm{color}=\mathrm{blue},\mathrm{legend}=\left["Shell-side liquid"\right]\right):$$\phantom{\rule[-0.0ex]{0.0em}{0.0ex}}\phantom{\rule[-0.0ex]{0.0em}{0.0ex}}\mathrm{p3}≔\mathrm{sol}:-\mathrm{plot}\left(\mathrm{Tw},\mathrm{t}=5,\mathrm{x}=0..\mathrm{L},\mathrm{axes}=\mathrm{boxed},\mathrm{color}=\mathrm{red},\mathrm{legend}=\left["Tube wall"\right]\right):$
 >
