The command Vertex(pc) returns the apex, as a list of rational numbers, of the polyhedral cone pc.

$\mathrm{with}\left(\mathrm{PolyhedralSets}\right)\:$$\mathrm{with}\left(\mathrm{PolyhedralCones}\right)\:$

$\mathrm{pc}≔\mathrm{PolyhedralCone}\left(\left[1\,1\right]\,\left[\left[0\,1\right]\,\left[1\,0\right]\right]\right)$

$\mathrm{pc}≔⟨\text{polyhedral cone with vertex}\left[1\,1\right]\text{and rays}\left(\begin{array}{cc}0& 1\\ 1& 0\end{array}\right)⟩$

$\mathrm{Vertex}\left(\mathrm{pc}\right)$

$\left[1\,1\right]$

$\mathrm{Rays}\left(\mathrm{pc}\right)$

$\left[\left[0\,1\right]\,\left[1\,0\right]\right]$

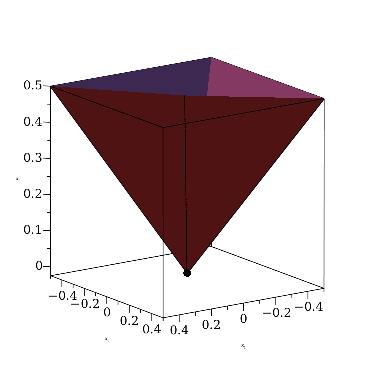

$\mathrm{ps}≔\mathrm{PolyhedralSet}\left(\left[-x\left[1\right]-x\left[2\right]-x\left[3\right]\le 0\,-x\left[1\right]+x\left[2\right]+x\left[3\right]\le 0\,x\left[1\right]-x\left[2\right]+x\left[3\right]\le 0\right]\right)\;$$\mathrm{PolyhedralSets}:-\mathrm{Plot}\left(\mathrm{ps}\right)$

$\mathrm{ps}≔\{\begin{array}{lll}\mathrm{Coordinates}& \:& \left[x_1\,x_2\,x_3\right]\\ \mathrm{Relations}& \:& \left[-x_1-x_2-x_3\le 0\,-x_1+x_2+x_3\le 0\,x_1-x_2+x_3\le 0\right]\end{array}$

$\mathrm{pc}≔\mathrm{PolyhedralCone}\left(\mathrm{ps}\right)$

$\mathrm{pc}≔⟨\text{polyhedral cone with vertex}\left[0\,0\,0\right]\text{and rays}\left(\begin{array}{ccc}1& 1& 0\\ 1& 0& \mathrm{-1}\\ 0& 1& \mathrm{-1}\end{array}\right)⟩$

$\mathrm{Vertex}\left(\mathrm{pc}\right)$

$\left[0\,0\,0\right]$

$\mathrm{Rays}\left(\mathrm{pc}\right)$

$\left[\left[1\,1\,0\right]\,\left[1\,0\,\mathrm{-1}\right]\,\left[0\,1\,\mathrm{-1}\right]\right]$

$\mathrm{ps}≔\mathrm{PolyhedralSet}\left(\left[\left[0\,0\,0\right]\right]\,\left[\left[1\,-1\,1\right]\,\left[-1\,1\,1\right]\,\left[-1\,-1\,1\right]\,\left[1\,1\,11\right]\right]\right)\;$$\mathrm{PolyhedralSets}:-\mathrm{Plot}\left(\mathrm{ps}\right)$

$\mathrm{ps}≔\{\begin{array}{lll}\mathrm{Coordinates}& \:& \left[x_1\,x_2\,x_3\right]\\ \mathrm{Relations}& \:& \left[-x_2-x_3\le 0\,-x_1-x_3\le 0\,x_1+\frac{5x_2}{6}-\frac{x_3}{6}\le 0\,x_1+\frac{6x_2}{5}-\frac{x_3}{5}\le 0\right]\end{array}$

$\mathrm{pc}≔\mathrm{PolyhedralCone}\left(\mathrm{ps}\right)$

$\mathrm{pc}≔⟨\text{polyhedral cone with vertex}\left[0\,0\,0\right]\text{and rays}\left(\begin{array}{ccc}1& \mathrm{-1}& 1\\ \mathrm{-1}& \mathrm{-1}& 1\\ \frac{1}{11}& \frac{1}{11}& 1\\ \mathrm{-1}& 1& 1\end{array}\right)⟩$

$\mathrm{Vertex}\left(\mathrm{pc}\right)$

$\left[0\,0\,0\right]$

$\mathrm{Rays}\left(\mathrm{pc}\right)$

$\left[\left[1\,\mathrm{-1}\,1\right]\,\left[\mathrm{-1}\,\mathrm{-1}\,1\right]\,\left[1\,1\,11\right]\,\left[\mathrm{-1}\,1\,1\right]\right]$

The PolyhedralSets[PolyhedralCones][Vertex] command was introduced in Maple 2025.

For more information on Maple 2025 changes, see Updates in Maple 2025.
