Highlighting Multibody Ports and Axes

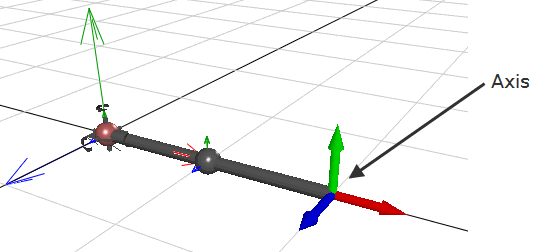

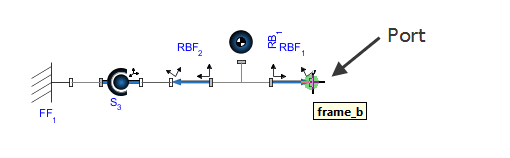

Multibody ports are represented by axes in the 3-D workspace. The orientation of these axes is important when you connect multibody ports together because it determines the orientation of the multibody components in the 3-D Workspace. For large models, it can be difficult to see a multibody axis in the 3-D Workspace. You can highlight a multibody port in the Model Workspace to make the corresponding axis easier to see in the 3-D Workspace.

To highlight multibody ports and axes:

	See Also
	Assembling a 3-D Model Identifying Objects in a 3-D Model Toolbar: 3-D Toolbar Toolbar: Playback Controls Visualizing a 3-D Model
