IcosidodecahedronGraph - Maple Help

GraphTheory[SpecialGraphs]

 IcosidodecahedronGraph
 construct icosidodecahedron graph

 Calling Sequence IcosidodecahedronGraph() IcosidodecahedronGraph(V)

Parameters

 V - set or list of size 30 (optional)

Description

 • IcosidodecahedronGraph() creates the icosidodecahedron graph on 30 vertices.
 • This graph is an Archimedean graph and an Eulerian graph.
 • You can optionally input the labels of the vertices as a list.

Examples

 > $\mathrm{with}\left(\mathrm{GraphTheory}\right):$
 > $\mathrm{with}\left(\mathrm{SpecialGraphs}\right):$
 > $\mathrm{TC}≔\mathrm{IcosidodecahedronGraph}\left(\right)$
 ${\mathrm{TC}}{≔}{\mathrm{Graph 1: an undirected graph with 30 vertices and 60 edge\left(s\right)}}$ (1)
 > $\mathrm{IsPlanar}\left(\mathrm{TC},'F'\right)$
 ${\mathrm{true}}$ (2)
 > $\mathrm{nops}\left(F\right)$
 ${32}$ (3)

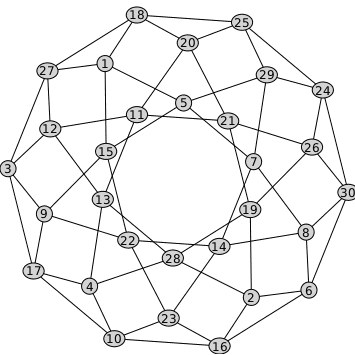

 > $\mathrm{DrawGraph}\left(\mathrm{TC},\mathrm{style}=\mathrm{spring}\right)$

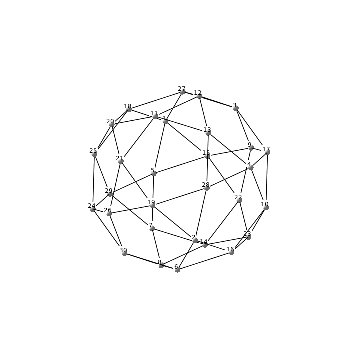

 > $\mathrm{DrawGraph}\left(\mathrm{TC},\mathrm{style}=\mathrm{spring},\mathrm{dimension}=3\right)$

Compatibility

 • The GraphTheory[SpecialGraphs][IcosidodecahedronGraph] command was introduced in Maple 2024.
