The Effect of a Zero on a Second Order System's Performance

Author
: Maplesoft AuthorMaplesoft
Engineering software solutions from Maplesoft
This Application runs in Maple. Don't have Maple? No problem!
 Try Maple free for 15 days!

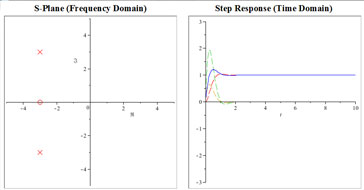

An interactive worksheet that goes through the effect of a zero on a second order system. The worksheet visually shows how changing the poles or zero in the S-plane effects the step response in the time domain.

This application is part of the Classroom Content: Control Theory collection.

Application Details

Publish Date: May 21, 2010
Created In: Maple 14
Language: English
